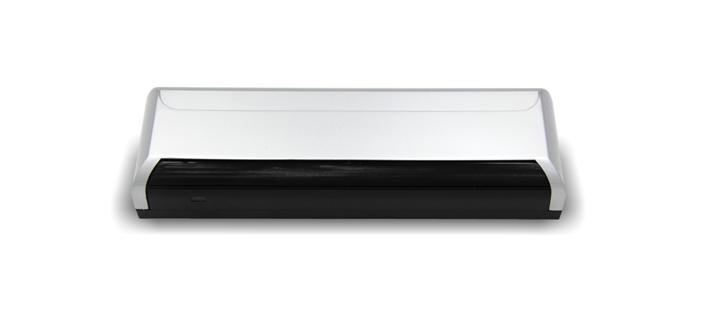

MOTION&PRESENCE INFRARED SENSOR CNB254

Description

This equipment integrates the startup and anti-clip, and is applied to the opening and safety protection functions of the translation door. Start and anti-clip using infrared induction, can use effective and relatively accurate control induction range.

Infrared anti-clip adopts the background self-learning function, which automatically learns the background state Intelligent to automatically adapt to various scenarios. Automatic real-time compensation for time drift can produce self-correction due to various external factors (such as slight vibration, deformation, gradual shift, light and sunlight, etc.), to ensure the long-term and reliable work of the detector.

Technical parameter

Input Power: AC/DC12 24V(-/+10%)

Lead Length: 2.5m

Signal Output: Relay, 1 anti-clip, 1 start

Maximum Installation Height: 2600mm

Standby Current: 30 mA (DC12V power supply)

Action Current:  110 mA (DC12V power supply)

Appearance Size: 229 (L) 67 (W) 41 (H) mm

Shell: ABS

Light Type:   infrared modulation light

Light Source:  infrared 940mm

Beam:  1 road anti-clip, 4 emission, 16 light point, 3 path start, 12 emission, 48 light point

Self Learning Time: 10s

Operation Indicator Display: Standby green bright, start signal yellow, anti-clip red

Temperature Range: -40℃ to 60℃ 800

Detection Width: 800(W)×1600(D)mm

Detection Depth: 800(W)×1500(D)mm

Output Hold Time: anticlip 500ms, start 2s

Response Time: ≤100ms
