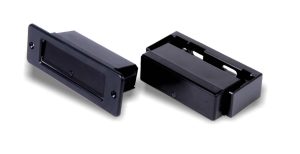

INFRARED PRESENCE DETECTOR CNB-220
$65.00
Description
INFRARED PRESENCE DETECTOR CNB-220
Product application
It can be used for rotating door, translation automatic door and other places for automatic detection to prevent people, and also used for detection of human body entry area in specific scenes, which can be mounted hidden or exposed. Suitable for vertical installation.
Overall characteristics
Using the optical triangles structure division principle, the detection distance regulation is convenient. International structure process, optical lens adjustable, make the anti-clamping range adjustment accurate.● The full set of the system adopts microcomputer integration technology, strong anti-interference ability, extreme stability High, and the system responds quickly.
Technical parameter
Vertical scan range adjustment: 800-2500mm
Effective induction area: 50mm
Maximum installation height: 3000mm
Quiescent current: 28MA
Action current: 70MA（DC12V）
Size dimension: 102X46X32mm（Sensor only）
Front and rear scan range adjustment: 150mm offset
Angle of divergence: > 1.4 Degrees
Working voltage: AD/DC 12-36V
Functional display: Standby is green, the induction action is red
Signal output: Relay contact signal output, with COM.NO.NC three points for selective
Running mode: Background inhibition
